Optical Manufacturing Equipment
Explore equipment for cutting, curve generating, fine grinding, polishing, edging and inspection. Browse by process to find machines for an individual operation or a complete optical production line.

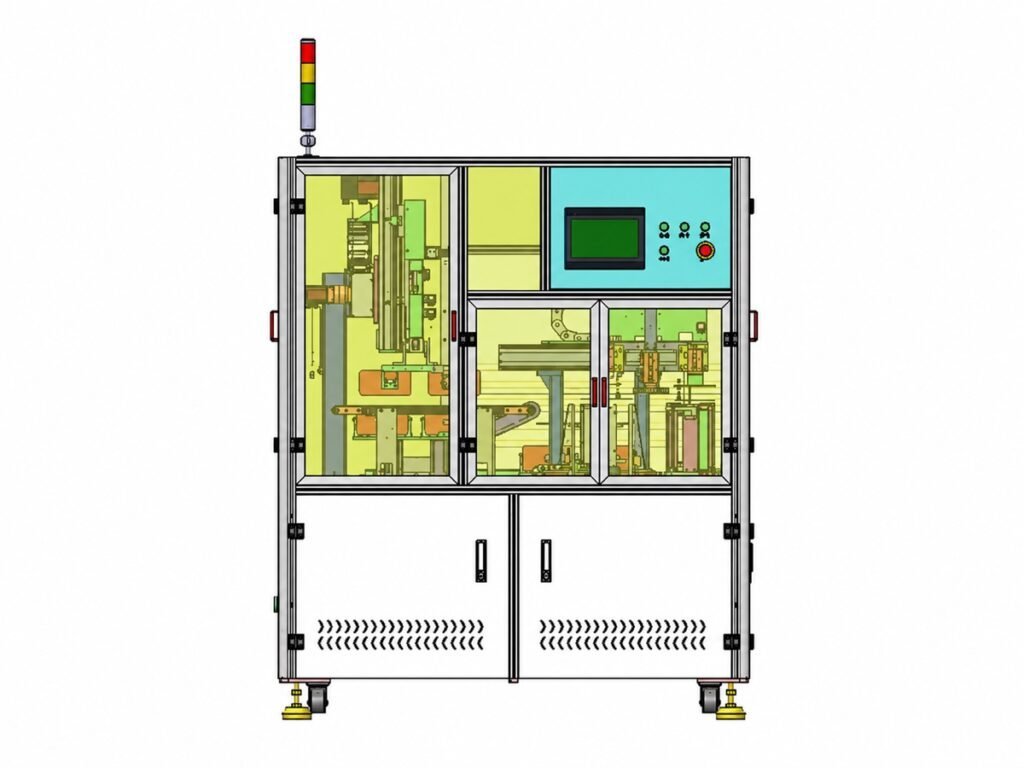

- Stacks 5–7 in cover glass
- Stack up to 210 mm for EP-220C
- 2.5–3.5 s per part

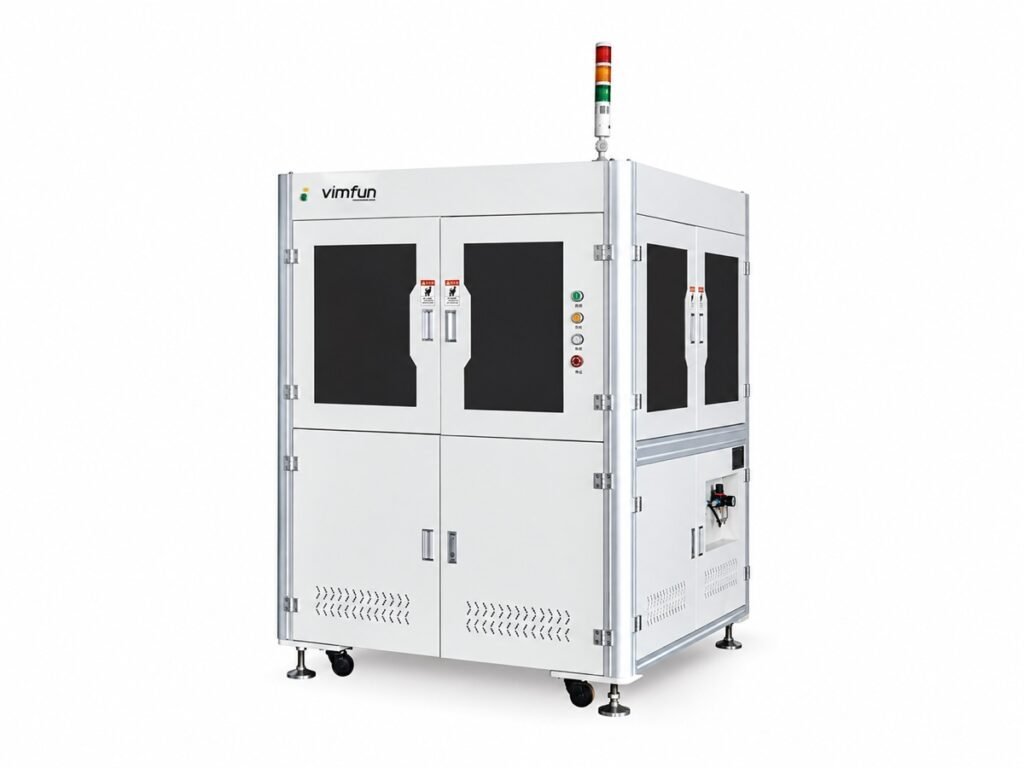

- Non-contact lens form check
- Ø & thickness up to 20 mm
- ±0.0015 mm repeat, 2 s/part

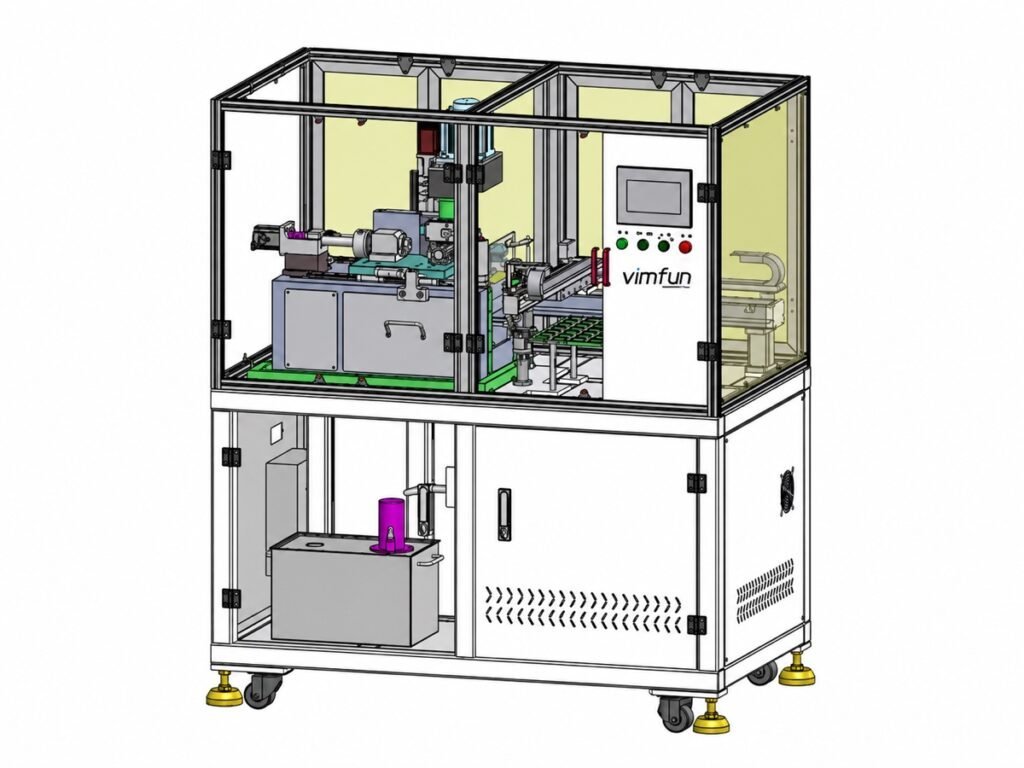

- Fully automatic pick-and-place
- Ø 5–80 mm, round & shaped
- 15 s cycle, 0.01 mm feed

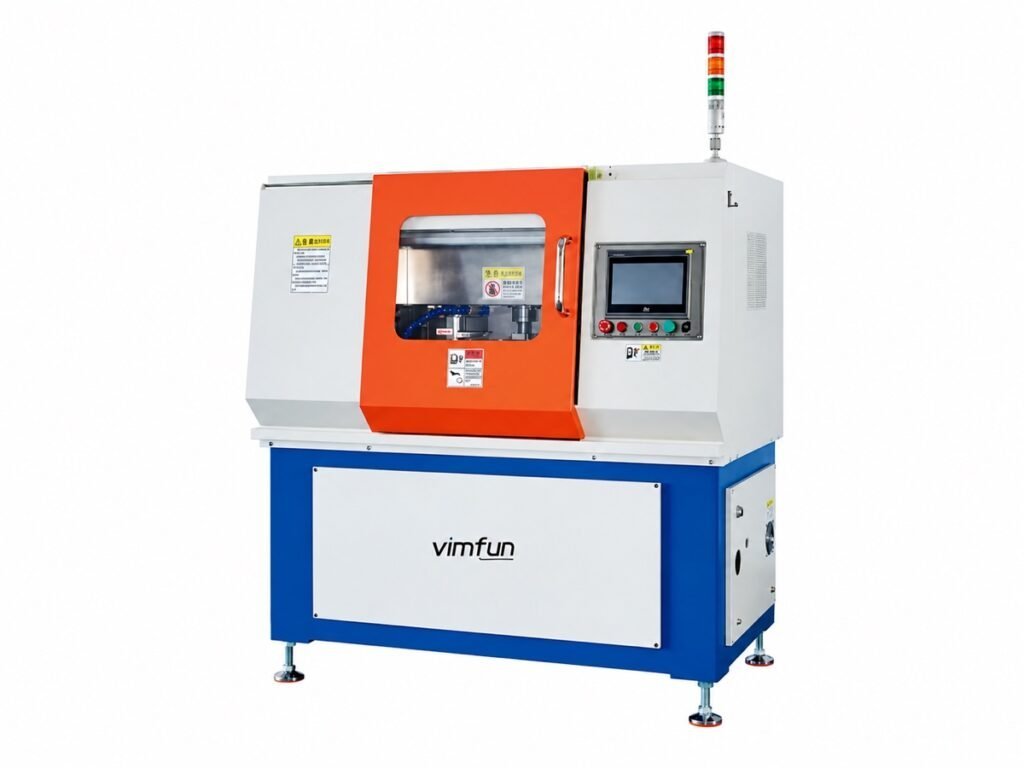

- Edges of 2D & 2.5D flat panels
- Ø 30–220 mm workpieces
- CAD outline import, 30 stored

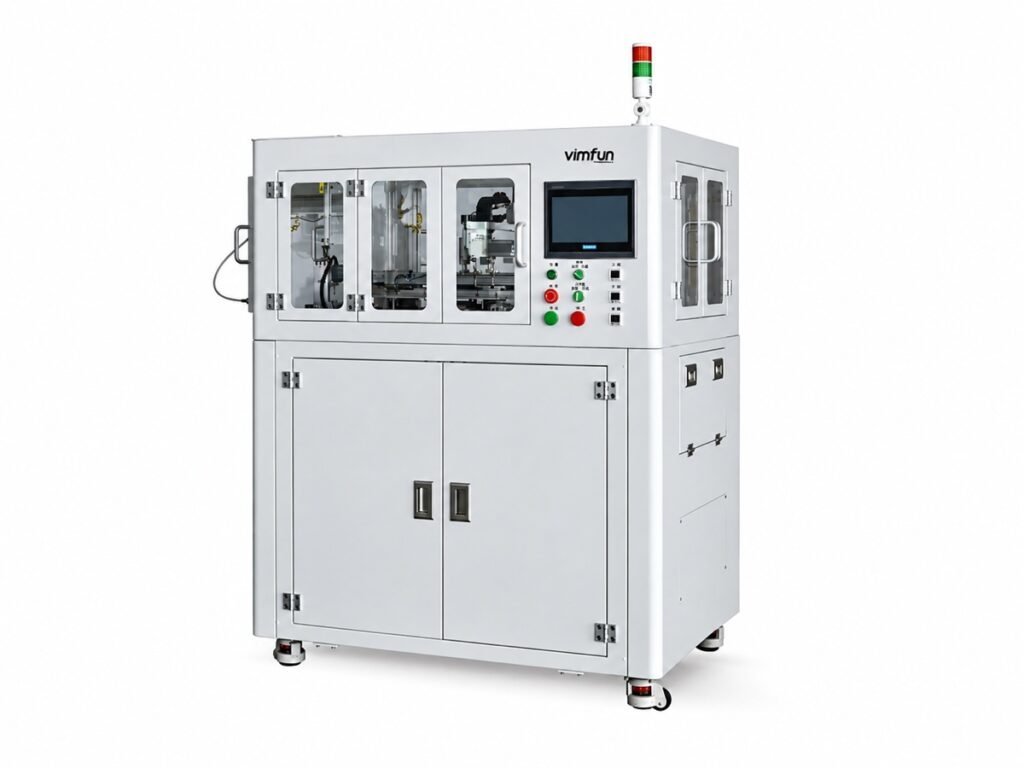

- In-cycle sagitta correction
- Ø 10–55 / Ø 5–80 mm
- 5-stage servo feed

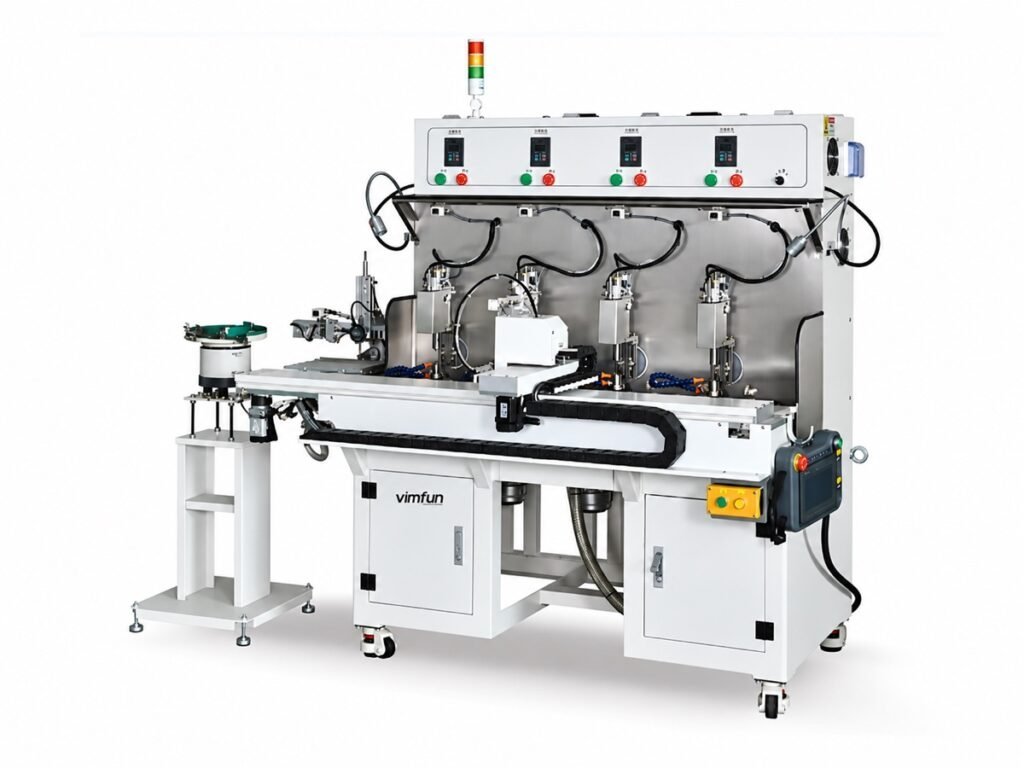

- 4 spindles, upper swing – concave
- R1–R20, Ø up to 30 mm
- Servo swing axis, robot-ready

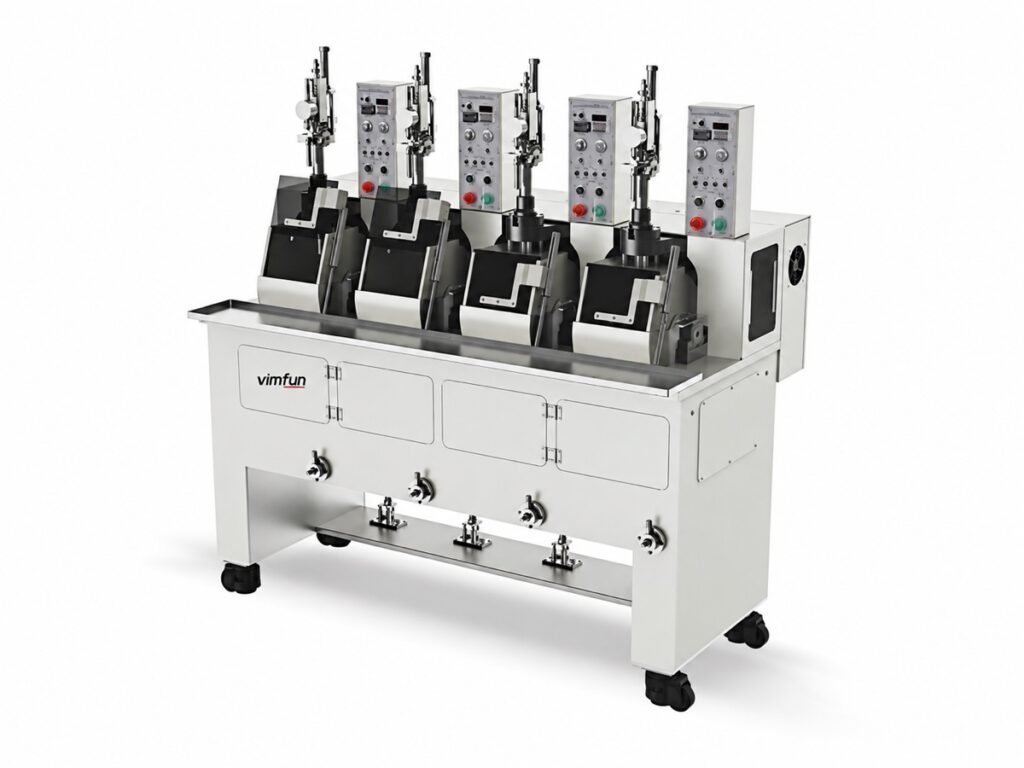

- 4 spindles, lower swing – convex
- ±R1.5–R50, Ø 3–30 mm
- 200–3,000 rpm spindles
- Convex, concave & flat cylinders
- CNC X/Y travel 140 × 140 mm
- Wheel swing 0–45°
- Wire Diameter (mm): 0.3 – 3.5
- Wire Length (mm): 700 – 10000
- Wire Diameter (mm): 0.3 – 3.5
- Wire Length (mm): 700 – 10000
Choosing equipment for your process?
Compare the process options, then share your material, part drawing and required output with our team.
Discuss your equipment requirements
