Can your cutter cut coated optical glass safely? I have more than 12 years expertise in optical filter cutting machines and precision optical machining. I’ve seen how the improper equipment can destroy coatings and waste expensive glass.
In this article I will assist you to pick the proper optical filter cutting machine for coated glass. I’m going to discuss coating safety, heat control, speed, kinds of machines, real-life examples, and FAQs. By the time you’re done you’ll know just what to look for.

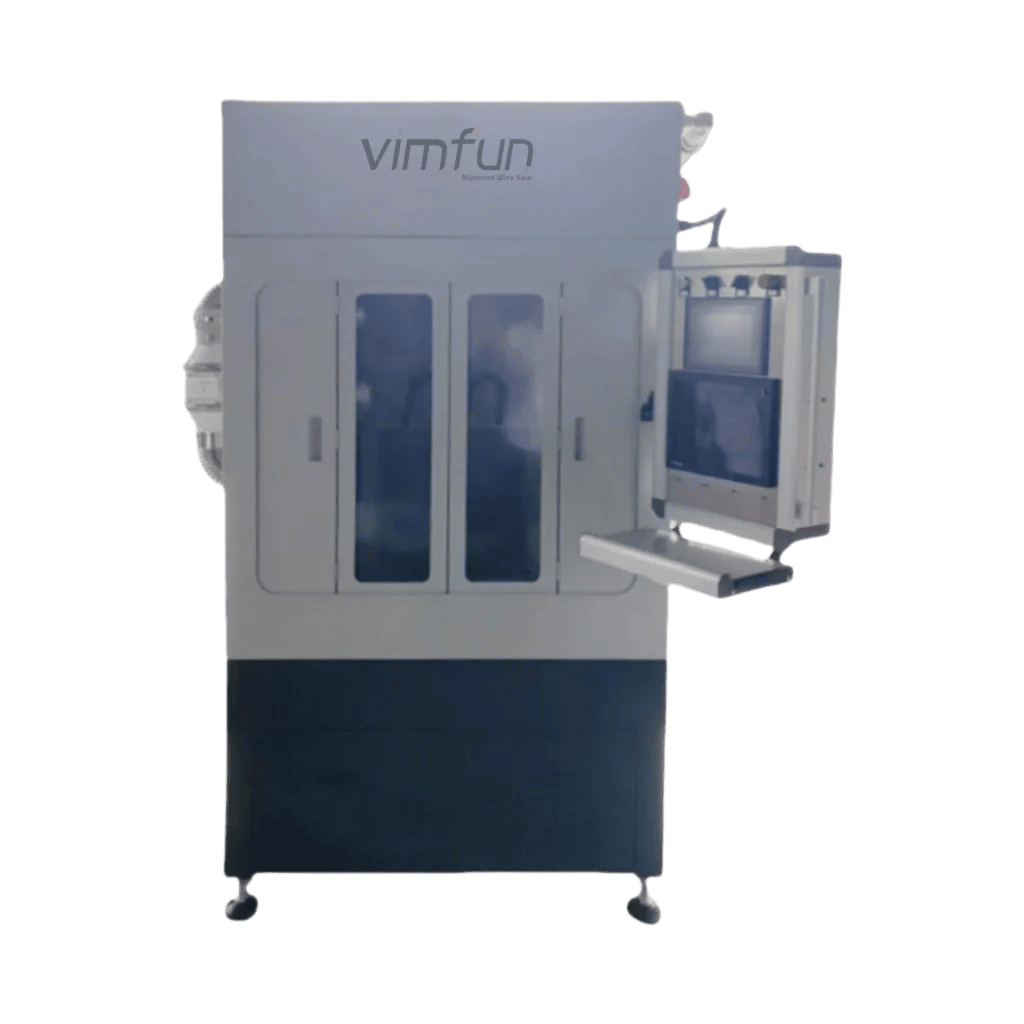

What Is an Optical Filter Cutting Machine and Why Does It Matter?
An optical filter cutting machine is a machine for cutting optical glass with great accuracy. It cuts, shapes and trims filters without cracking or chipping. These devices operate on coated glass, AR filters, IR-cut filters and band pass filters. The coated glass is incredibly thin and brittle on the surface. A little heat or a little movement may shatter the covering.
You can’t use a normal glass cutter here. Optical glass cutting machines employ diamond wires, CNC systems or specific blades. They provide extremely high precision cuts with very minimum heat. The correct machine keeps your coating, reduces waste and accelerates labour.
Standard Glass Cutter vs. Optical Filter Cutting Machine
| Feature | Standard Glass Cutter | Optical Filter Cutting Machine |
| Coating Safety | Low | High |
| Heat Generated | High | Very Low |
| Cut Precision | ±0.5 mm | ±0.01 mm |
| Material Fit | Basic glass | Coated & optical glass |
| Edge Quality | Rough | Smooth, chip-free |
| Speed Control | Manual | CNC Programmable |
How Does Heat Affect Coated Glass During Optical Filter Machining?
The coated glass’s worst enemy is heat. Excessive heat might cause the coating to peel or break. It may also alter the way the filter functions. That renders the filter worthless. Optical filters must be machined with low heat, lest the coating be damaged. A good machine employs water cooling and modest feed rates.
It employs fine-diamond tools to keep the heat down. Some heat damage is not visible. The glass could seem OK when sliced. But it still may fail a quality check down the road. This is a severe challenge in the optical component manufacturing industry. It leads to great waste and lost money.
How Diamond Wire Cutting Lowers Heat Damage
- A diamond wire cutting machine is a thin wire with diamond pieces that slowly and neatly cuts glass
- the wire is moved at a constant pace to prevent heat buildup
- Water or coolant carries away heat from the cut zone
- Less tension on the glass and its coating equals little friction
- One of the safest methods to cut coated glass fragile
Heat Control by Cutting Method
| Cutting Method | Heat Level | Coating Safety | Coolant Needed | Best For |
| Diamond Wire Saw | Very Low | Excellent | Yes (Water) | Coated optical glass |
| Laser Cutting | Very High | Poor | No | Metal, not coated glass |
| CNC Grinding | Medium | Good | Yes | Hard optical ceramics |
| Blade Cutting | Medium-High | Fair | Optional | Basic glass panels |
Key Points on Heat Control:
- Always utilise water cooled systems for coated glass.
- Keep the feed rate low to reduce friction
- Check coolant temperature often during extended cuts.
- Use an infinite diamond wire saw for long runs at low heat
What Machine Types Work Best for Precision Optical Glass Shaping?
The choice of the correct machine is the most crucial phase in the shaping of optical glass. All machine types have their own advantages and disadvantages. It chips the improper choice chips and coatings and breaks the edges. The appropriate one makes clean cuts and safe coatings.
Today the best choices are precision contour cutting equipment and CNC wire saw machines. They combine speed, precision and minimal heat into one mechanism. This is a look at the most common kinds of machines used in making optical components.
CNC Wire Saw Machine – The Top Choice
A CNC wire saw machine is a computer-controlled diamond wire. It cuts optical glass to any form with zero guess work. All cuts are made along the same line. This is needed for batch work.
- Very accurate ±0.01 mm or better
- Works with complicated and curved forms
- Supports DXF contour cutting – upload your file and cut out
- Coatings remain safe at low temperatures
- Works for long and short runs
Endless Diamond Wire Saw – Best for Big Production Runs
The infinite diamond wire saw is a continuous wire loop. It cuts smoothly and evenly all the way across.
- No wire junctions – so cuts are cleaner and more consistent
- Great for cutting huge glass panels for filter blanks
- Very little cutting chatter
- Less chipping of the edge on coated surfaces
- Uses fewer wires per cut than single pass saws
Machine Type Comparison
| Machine Type | Advantages | Disadvantages | Best Sector |
| CNC Wire Saw | High precision, DXF support | Higher starting cost | Optics, Aerospace |
| Endless Diamond Wire Saw | Smooth cuts, low vibration | Needs wire checks often | Large-scale optics |
| CNC Grinding Machine | Works on hard materials | More heat, slower speed | Ceramic components |
| Blade Cutting Machine | Low cost | Poor coating safety | Basic industrial glass |
Coated optical glass is the ideal for CNC wire saws and endless diamond wire saw machines. They maintain low heat, preserve coatings and allow for DXF contour cutting of any form.
What Are Real-World Examples of Optical Filter Cutting in Industry?
Real examples illustrate how optical glass cutting machines tackle difficult situations. Accurate optical filters are needed in a wide range of areas. Aerospace, medical, communications, defence, all need flawless coatings and precise forms.
One improper cut may damage a product in service. Here are four real-world examples that demonstrate the importance of the correct equipment for producing optical components and cutting ceramic parts.
Real Industry Case Studies – Optical Filter Cutting Results
| Industry | Problem | Machine Used | Result |
| Aerospace Optics | Coating peeling during cut | CNC Wire Saw + Coolant | Zero coating loss, ±0.01 mm precision |
| Medical Imaging | Chips on AR-coated filters | Endless Diamond Wire Saw | Clean edges, 98% pass rate |
| Telecom Filter Maker | Slow output, high waste | CNC Wire Saw with DXF | 3x faster, waste cut by 60% |
| Defense Optics | Complex contour shapes needed | Precision Contour Cutting CNC | 100% shape match, no rework |
Key Lessons from These Cases
- Coating safety is the number one necessity for aerospace and defence work
- CNC tools and DXF contour cutting speed jumps
- Endless diamond wire saws are effective in the manufacturing of medical filters.
- Manual fix-up labour is eliminated by precision contour cutting
Why Vimfun Is the Smart Choice for Optical Filter Cutting Machines
Need a reliable machine supplier? Vimfun (vimfun.com) is a famous brand in optical glass cutting machine and CNC wire saw machine. They manufacture machinery for Ceramic component cutting, optical parts and coated glass.
They have DXF contour cutting, water cooling and endless wire systems. Vimfun machines are used in factories all throughout Asia, Europe and the Americas. If you require coating safety and accuracy, then Vimfun is the best solution for you.
What Should You Check Before Buying an Optical Filter Cutting Machine?
Before you buy, check all these points:
- Coating compatibility Is it compatible with your coating type (AR, IR, bandpass)?
- Heat control – Water cooled or dry cut?
- Speed settings- can you slow the flow rate for thin coatings?
- DXF support – Can you load design files and cut from them?
- Endless wire alternative – fit for lengthy manufacturing runs?
- After-sales support: Does the provider offer training and replacement parts?
- Test cut offer – Do they cut your glass as a test before you buy?
Vimfun has all of these. They provide a free test cut before you decide as well. This gives you confidence before you spend your money.
Frequently Asked Questions
What is the best machine for cutting AR-coated optical glass?
The ideal choice is the CNC wire saw machine, also known as the infinite diamond wire saw. Both employ low heat and diamond cutting. They protect thin coats. Water cooling preserves the glass throughout the complete cut.
- Always utilise water cooling.
- Select a low feed rate for thin coatings
- Test cut before full production
Can a laser cutter be used for optical filter cutting?
No. A laser cutter becomes quite hot. This destroys the optical coatings instantly. Optical filter manufacturing requires diamond wire or CNC grinding. Laser is not safe on coated glass.
- The heat of the laser damages the coating layers.
- Diamond wire saws are the safe choice
- Match your machine to your kind of coating
What is DXF contour cutting, and why does it matter?
You may load a design file to a CNC machine using DXF contour cutting. The machine then cuts that precise form on its own. It saves time and prevents human mistake. It works for any custom filter shape.
- Fits all shapes/designs
- Reduces setup time between tasks
- Each cut is a duplicate of the file
How does an endless diamond wire saw speed up production?
An unending diamond wire saw runs forever. There are no wire splices to slow it down. The cuts are quick, smooth and uniform throughout the whole sheet of glass.
- No wire change prevents
- Same quality cut all the way through
- Lower cost per cut on cable
What industries use optical glass cutting machines the most?
Top sectors include aerospace, medical imaging, defence, telecom and consumer electronics. They all need clean, precise cuts on coated glass. The production of optical components is booming. Every year, the need for cameras and sensors is increasing.
- Precision is primarily needed in defence and aerospace
- Zero harm to coating for medical imaging
- Telecom wants high output with speed
Conclusion
A CNC wire saw machine or infinite diamond wire saw is the finest choice for coated glass. It has to have water cooling and DxF contour cutting. These machines are safe on paint. They keep the heat out. They cut clean and quickly.
A poor machine is a waste of money and glass. Don’t take that chance. visit vimfun.com now They offer optical filter cutting machines, diamond wire cutting machines and precise contour cutting tools. Vimfun is there to assist you find the proper computer and is fully supportive.
