How can large manufacturers consistently cut small optical filters to size while leaving their edges smooth?
For 8 years now, I have been working for this industry. Both excellent and evil machines have passed before my eyes. The things that work in actual work were taught to me. I know the importance of using the correct optical filter shaping machine for safe and clean cutting from my experience with many tools.
Everything will be explained in very simple terms in this article. In this article, I shall define an optical filter shaping machine and explain its uses. In the words of a I shall describe the machine’s working in detail. Its components, functions, and their uses will all be covered. I will also assist you in selecting a suitable machine so that you don’t overspend.
What is Optical Filter Shaping Machine and Its Core Uses

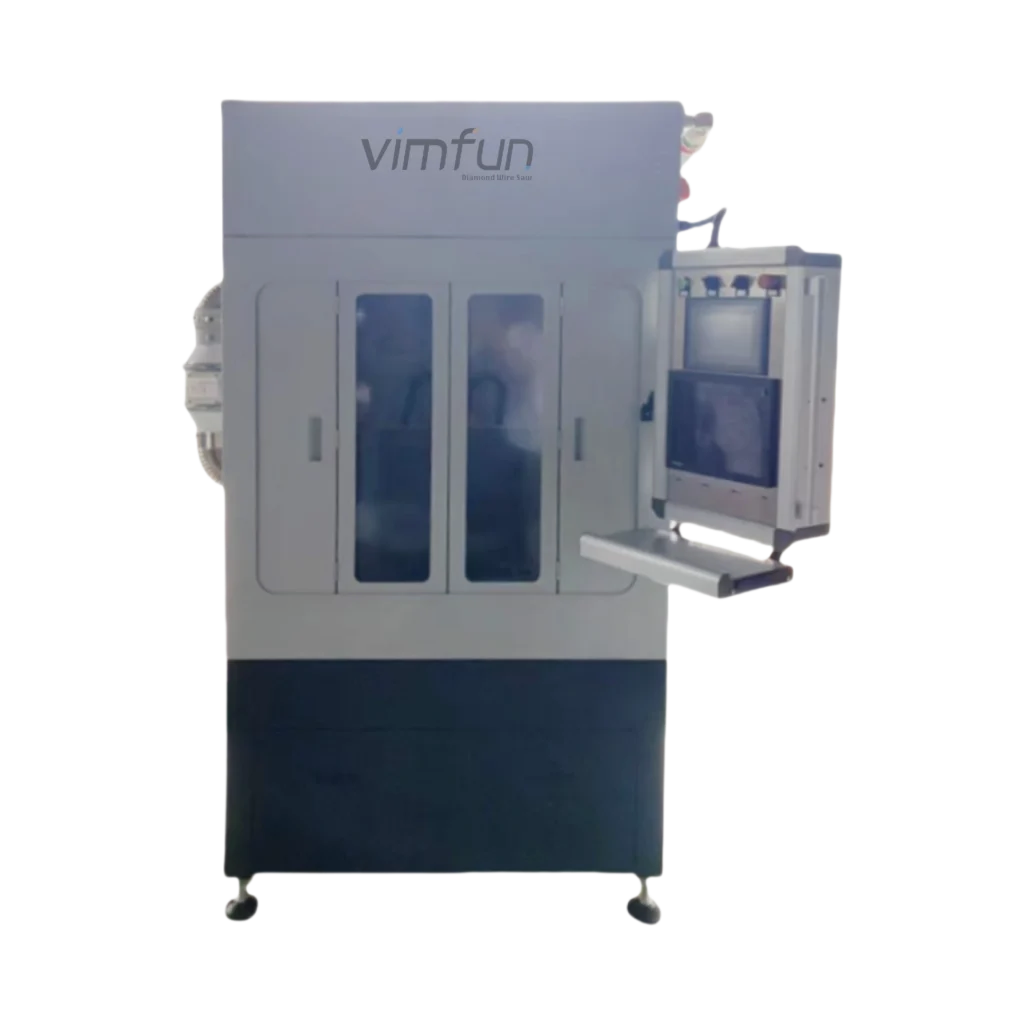

A machine designed specifically for cutting and shaping optical glass into the ideal shape and size is known as an optical filter shaping machine. Cameras, lab equipment, laser machines, and countless other gadgets make use of these filters. Because of its fragility, the glass can lead to breaking easily. So, this machine moves at a slow pace, taking great care not to damage anything. To avoid breaking the glass, it uses cutting equipment such as a CNC endless diamond wire saw.
Basic complex shapes like squares and circles are within this machine’s capabilities. Hard forms with curves and corners may also be made using it. The final result has clean lines and functions well since the edges are so smooth. The machine is used by many industries to decrease waste and increase quality. Optical glass dicing saws and glass cutting machines are among the instruments it may collaborate with to complete a variety of tasks. This gadget is relied upon by several areas, including medical, lab, and tech, due to its exceptional accuracy.
High Precision Optical Filter Shaping Data Overview
| Feature | Description | Benefit | Industry Use |
| Cutting Type | CNC Wire Cutting | Very accurate cut | Optics labs |
| Material | Glass, Ceramic | Works on many materials | Electronics |
| Precision | Micron level | Very smooth edges | Medical devices |
| Shape Type | Complex & Simple | Flexible design | Camera lenses |
How Does Optical Filter Shaping Machine Work Efficiently?
The process of shaping glass using an optical filter shaping machine is very precise and cautious. The process involves coating a tiny wire with diamond particles. Despite its sharpness and strength, this wire cuts slowly so as not to shatter the glass. An algorithm in the computer software dictates the machine’s motion. It aids the machine in accurately cutting the same form time and time again.
The machine is capable of cutting intricate patterns as well as straight lines and rounded corners. Particularly helpful in fields where the consequences of a slip-up might be severe. The use of a CNC infinite diamond wire saw and similar tools allows for more consistent and rapid operations. This allows manufacturers to save time while enhancing the quality of their products.
Working Process and System Flow Explained
Once the user sets the glass on the bed of the machine, the operation begins. The next step is to import the design file into the system. This file is typically in DXF format. After reading the blueprint, the machine sets out to follow the specified route for the Wire. In order to prevent heat from causing cracks, a cooling liquid is used during cutting. The glass is shaped by the Wire’s gradual yet precise movements.
The next step, after cutting, is to clean and inspect the finished product for quality. To guarantee a flawless end result, this step is crucial. You can effortlessly produce intricate and elaborate patterns with the aid of machines like the DXF glass cutting machine and the Wire saw for complicated curves.
Technical Working Parameters Table
| Step | Process | Tool Used | Output |
| Input | Design Upload | Software | Ready layout |
| Setup | Fix material | Clamp | Stable hold |
| Cutting | Wire motion | Diamond wire | Shape formed |
| Finish | Clean & check | Fluid | Smooth surface |
Key Working Advantages
- Very high cutting accuracy for small parts
- Less waste so it saves material cost
- Smooth edges so less polishing is needed
- Can cut complex shapes with ease
Comparison of Cutting Methods in Optical Industry
| Method | Accuracy | Speed | Cost |
| Wire Saw | High | Medium | Medium |
| Laser | Very High | High | High |
| Blade Cutting | Medium | High | Low |
The precision and affordability of wire saw cutting are well-balanced. Although expensive, a laser is quick. Optical work is best done using a wire saw since blade cutting is less expensive but less accurate.
What Features Make Optical Filter Shaping Machine Best?
There are a lot of helpful features that make using a decent optical filter shaping machine simple and safe. Machine learning is a crucial element. Thanks to this, the user may operate the machine from a computer and consistently receive precise results. Glass and ceramic are only two of the many materials that may be safely supported by this.
Many sectors rely on machines that produce consistent and flawless cuts, such as precision ceramic cutting CNC machines and precision CNC cutters. These machines are sturdy and reliable, so you can count on them for a long time.
Key Features and Performance Highlights Explained
These days, much of the machinery has touch displays and is simple to use. Effortlessly begin the cutting process when users submit their design files. The diamond wire that is used in the machine is exceptionally durable and able to breaking. The cooling devices are included to safeguard the material while it is being sliced.
Because of their small size and reasonable price, machines such as the Compact CNC wire saw for laboratories are ideal for smaller labs. Plus, even newcomers will have no trouble using them. Automated cutting is another feature of modern machines that helps save time and cuts down on human mistake.
Feature Specification Table for Machine Selection
| Feature | Type | Benefit | Use Case |
| CNC Control | Auto system | Easy use | Labs |
| Wire Type | Diamond | Long life | Glass cutting |
| Cooling | Water | Safe cutting | Precision work |
| Design Input | DXF | Flexible shapes | Custom jobs |
Major Benefits of Advanced Machines
- Easy to operate even for new users
- Very high repeat accuracy every time
- Low maintenance and long life use
- Can handle complex and custom shapes
Feature Comparison Across Machine Types
| Machine | Precision | Cost | Size |
| Lab CNC | High | Low | Small |
| Industrial CNC | Very High | High | Large |
| Manual | Medium | Low | Medium |
Industrial machinery is expensive yet produces excellent results. Small and affordable, lab equipment are a great investment. For complicated tasks, manual machines are inadequate due to their lack of accuracy and simplicity.
Which Industries Use Optical Filter Shaping Machine Today?
Optical filter shaping machines find common usage in fields demanding precise precision. These machines are useful for making parts that need to be spotless and exact in size. These devices are vital to many different industries, including healthcare, military, electronics, and research.
For shapes that aren’t quite flat, machines like the 2D contour glass cutting machine and the Irregular glass shaping machine come in handy. Without damaging the cloth, they effortlessly cut through intricate curves and designs.
Industry Applications and Real Case Examples Explained
Filters for imaging machines, such scanners, are manufactured using these machines in the medical industry. For reliable results, these filters must be impeccably clear. Their defensive use is in laser systems that cannot afford even the slightest mistake. They find use as sensors and display parts in electrical tools.
When intricate tasks need machine control, such as slicing and profiling machines, these tools come in handy. High accuracy and clean cuts are needed in every business.
Industry Application Data Table Overview
| Industry | Use | Benefit | Output |
| Medical | Imaging filters | Clear results | Safe devices |
| Defense | Laser optics | High precision | Strong parts |
| Electronics | Sensors | Accuracy | Smart devices |
| Research | Lab tests | Flexible use | Custom parts |
Key Industry Advantages
- Produces very high quality products
- Works with great reliability every day
- Helps create new and advanced products
- Reduces errors and saves time
Industry Comparison by Machine Use Efficiency
| Industry | Precision Need | Volume | Machine Type |
| Medical | Very High | Medium | CNC Wire Saw |
| Defense | High | Low | Advanced CNC |
| Electronics | Medium | High | Auto Machines |
Fast manufacturing is essential in electronics, yet very precise work is required in medical and defense uses. A CNC wire saw machine’s speed and precision are well-balanced.
Case Studies of Machine Use in Different Sectors
| Company Type | Machine Used | Result | Benefit |
| Lab | Compact CNC | Fast testing | Saves cost |
| Factory | Industrial CNC | Mass output | High speed |
| Defense Unit | Advanced CNC | Perfect parts | Reliable use |
| Research Center | Wire Saw | Custom shapes | Flexible work |
FAQs About Optical Filter Shaping Machine
What is an Optical Filter Shaping Machine used for?
Its purpose is to precisely cut and shape optical glass. It may be used to make precise and clean parts.
What materials can it cut?
Ceramics and glass are both cuttable with it. These need delicate handling while being sliced.
Is CNC control important?
It does aid the machine in doing its tasks with great precision. It expedites and simplifies the process as well.
What is a Diamond Wire Saw?
This is a diamond-coated cutting wire. It aids in making clean cuts without tearing the cloth.
Can it create complex shapes?
Using design files, it is indeed capable of cutting intricate and detailed forms.
Is it good for small labs?
Yes, laboratories do in fact make tiny machines. They are inexpensive and simple to use.
How to choose the right machine?
Think about the price, the features, and the size of the item. Your job demands will determine your choice.
Conclusion
To get excellent results from your task, you must use the correct optical filter shaping machine. Clean cuts, material savings, and mistake reduction are defining features of a high-quality machine. Machines nowadays are designed to last, simple to use, and intelligent. They are useful for enhancing the quality of manufacturing in both large and small laboratories.
Find an reputable supplier if you’re in the market for a new machines. Vimfun is a good choice. Superior materials and cutting-edge engineering go into their machines. They are compatible with current CNC systems and are capable of swiftly completing precise cutting jobs. Additionally, new customers really benefit from Vimfun’s excellent service and support.
A best selection if you desire long-lasting life, great precision, and improved performance is Vimfun. Feel free to boost your manufacturing method by exploring their machines now.
